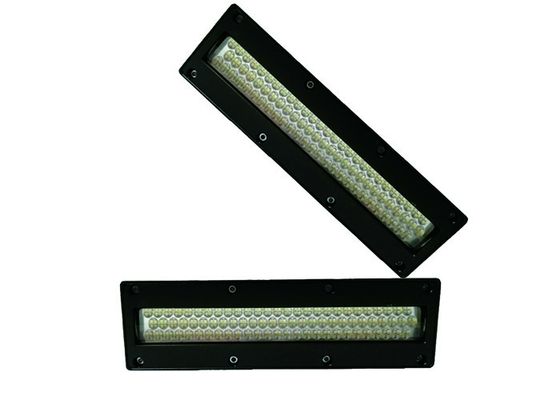

Double Lamps Water Cooled UV Lamp For Printer 2000w Adjustable Irradiation Intensity
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | SYOCHI |
| Certification: | CE,ROHS |
| Model Number: | SLCD-1652056B-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 SETS |
|---|---|
| Price: | 1150USD/SET |
| Packaging Details: | PE foam with carton box |
| Supply Ability: | 5000 SET/MONTH |
|
Detail Information |
|||
| Cooling Way: | Water Cooling | Wavelength: | 395nm |
|---|---|---|---|
| Emitting Size: | 165*20 | ||
| High Light: | uv lamp for screen printing,uv light for screen printing |
||
Product Description
2000w double lamps water cooled UV curing system & uv lamp for printing machine
| Model No. | SLCD-1652056B-02 | Qty of UV lamp(pcs) | 2 |
| Cooling way | water cooling | Model No. of Water chiller | 1500 |
| Wavelength (nm) | 395 | Input | AC220V, (optional) |
| Emitting size (mm) | 165x20 | Total Power (W) | 1700 |
| Irradiate distance (mm) | 5-10 | Power per Lamp (W) | 800 |
| Irradiation intensity (W/cm²) | 5-12, adjustable | Control method (optional) |
level control (3-24V) |
| Ambient temperature (℃) | 0-50 | Lifespan (H) | 20000 |
Features:Fast, flexible curing and drying
1. Cool Printing Environment: Enables to print on heat sensitive substrates, viz. thin slides, self-adhesive sheet, stretch PVC materials, and more. Minimum heat resistance allows effective bi-directional calibration.
2. Easy Switch OFF and ON: Easily switch ON and OFF without degradation of intensity. Thus, there is no warm up time which leads faster operation with high productivity.
3. Long life of the Machine: LED has a long life. Thus, they offer long term benefits without lamp down time or any other consumable cost. Power Saving: Consumes low electricity. Thus, it saves power and offers cost effective solution.
4. Environmental Friendly: Doesn’t consist mercury (a non-disposable element) and ozone gas that can harm the environment.
