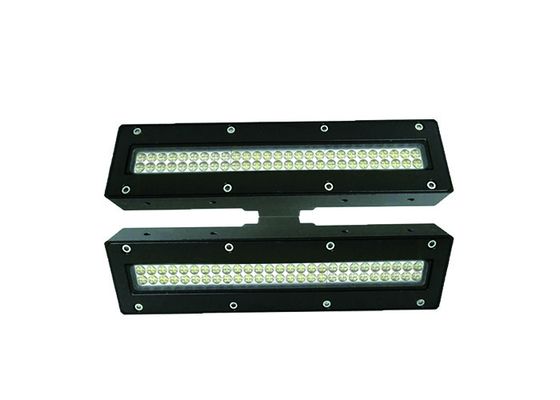

Metal 365nm UV Lamp For Printer 5-12w/cm2 Peak Irradiance 12 Months Warranty
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | SYOCHI |
| Certification: | CE,ROHS |
| Model Number: | SL-1801556A-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 SETS |
|---|---|
| Price: | 950USD/SET |
| Packaging Details: | PE foam with carton box |
| Supply Ability: | 5000 SET/MONTH |
|
Detail Information |
|||
| Raw Material: | Metal +uv Chips | Emitting Size: | 180*15mm |
|---|---|---|---|
| Peak Irradiance: | 5-12w/cm2 | Life Span: | 20000H |
| Warranty: | 12 Months | ||
| High Light: | uv lamp for screen printing,uv light for screen printing |
||
Product Description
high power uv led 365 nm uv light lamp manufacturer uv lamp for screen printing
Specification
 |
Model No. of UV lamp | SL-1801556A-01 | Qty of UV lamp (pcs) | 2 |
| Cooling way | water cooling | Model No. of Water chiller | 1500 | |
| Wavelength (nm) | 395 | Input | AC220V, (optional) | |
| Emitting window size (mm) | 180x15 | Total Power (W) | 1700 | |
| Irradiate distance (mm) | 2-10 | Power per Lamp (W) | 520 | |
| Irradiation intensity (W/cm²) | 9-18, adjustable | Control method (optional) |
level control (3-24V) |
|
| Ambient temperature (℃) | 0-50 | Lifespan (H) | 20000 |
Features:Fast, flexible curing and drying
Cool Printing Environment: Enables to print on heat sensitive substrates, viz. thin slides, self-adhesive sheet, stretch PVC materials, and more. Minimum heat resistance allows effective bi-directional calibration.
Easy Switch OFF and ON: Easily switch ON and OFF without degradation of intensity. Thus, there is no warm up time which leads faster operation with high productivity.
Long life of the Machine: LED has a long life. Thus, they offer long term benefits without lamp down time or any other consumable cost. Power Saving: Consumes low electricity. Thus, it saves power and offers cost effective solution.
Environmental Friendly: Doesn’t consist mercury (a non-disposable element) and ozone gas that can harm the environment.
