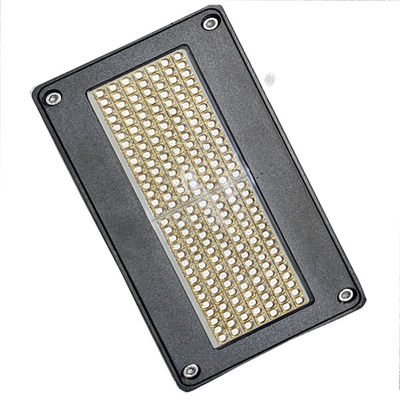

High Power UV LED Module 365nm 385nm 395nm 405nm For Curing Printing Ink Instant Cure
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Syochi |
| Certification: | CE |
| Model Number: | SL-1806035A-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 1100-1300USD/SET |
| Packaging Details: | Cartons |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 7000 SETS/MONTH |
|
Detail Information |
|||
| Type: | High Power LED | Wavelength: | 365/385/395/405NM |
|---|---|---|---|
| Emitting Color: | Purple | Operating Temperature(℃): | 1-50 |
| Viewing Angle(°): | 120 | Warranty: | 1 Year |
| High Light: | High Power UV LED Module,UV LED Module 365nm,Curing Printing high power uv led |
||
Product Description
Factory Price High Power 365nm 385nm 395nm 405nm UV LED Module for Curing Printing Ink Instant Cure
| Model No. of lamp head | SL-1806035A-01 | Qty of UV lamp(pcs) | 1 |
| Cooling way | water cooling | Model No. of Water chiller | Compressor |
| Wavelength (nm) | 395 | Input | AC220V, (optional) |
| Emitting window size (mm) | 180*60 | Total Power (W) | 1300 |
| Irradiate distance (mm) | 5-10 | Power per Lamp (W) | 1100 |
| Irradiation intensity (W/cm²) | 0-14 adjustable | Control method (optional) |
level control (3-24V) |
| Ambient temperature (℃) | 0-50 | Lifespan (H) | 20000 |
Advantage of ultraviolet curing technology
- UV dryers take up less space, so shops can utilize more revenue-producing equipment
- UV uses less energy, therefore significantly cutting operating costs
- UV ink goes farther than solvent-based ink (up to 60 percent per gallon)
- UV curing can increase throughput four times over solvent-based processes
- Clean-up time practically disappears, adding to the time available for production
- UV technology doesn't pollute, inside or outside the shop, which means healthier employees, and a healthier, "greener" environment
