Portable LED Ultraviolet Curing Light , LED Uv Lamp For Screen Printing Machine
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Syochi |
| Certification: | CE&RoHs certification |
| Model Number: | SLCD-1652056B-02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | one set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Inside: 1 unit UV Curing system packed with PE Foam Outside: Standard Export Carton |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 5000 sets per month |
|
Detail Information |
|||
| Technology: | UV LED Curing | Chip Material: | 6868 COD LED |
|---|---|---|---|
| Color Temperature: | Ultraviolet | UV Emitting Window: | 165x20mm |
| Cooling Method: | Water Cooling | Control Method: | 3-24v DC |
| Power: | 600w | Warranty: | One Year |
| High Light: | uv light curing equipment,uv led curing machine |
||
Product Description

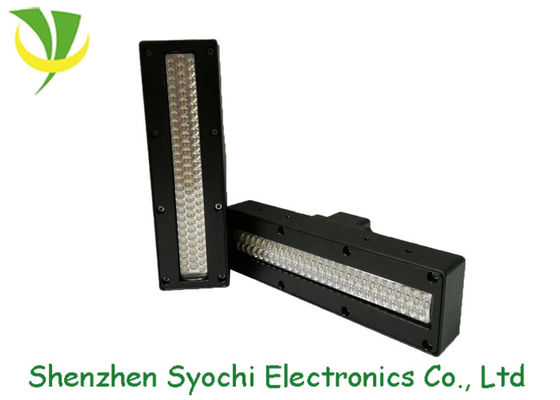

Water cooled UV light curing system with 6868 package UV LEDs
Specifications
| Model No. | SLCD-1652056B-02 | Qty of UV lamp(pcs) | 2 |
| Cooling way | water cooling | Model No. of Water chiller | 1500 |
| Wavelength (nm) | 395 | Input | AC220V, (optional) |
| Emitting size (mm) | 165x20 | Total Power (W) | 1700 |
| Irradiate distance (mm) | 5-10 | Power per Lamp (W) | 600 |
| Irradiation intensity (W/cm²) | 5-12, adjustable | Control method (optional) |
level control (3-24V) |
| Ambient temperature (℃) | 0-50 | Lifespan (H) | 20000 |
Product Advantages
1. Extra-long life: 20000h.
2.Energy saving: save 80% electrical energy than Mercury lamp
3.UV output adjustment: From 1% to 100%
4.Multiple control modes: Constant current, pedal control, intelligent optical and manual modes
5: Photoelectric induction, instant on/off, no preheating required.
6: Low energy consumption, just 20% of the ordinary uv lamp
7: No mercury, No Ozone, eco-friendly
8: Cold light source, low temperature
9: Stable output, high uniformity.
1. Syochi is the biggest and best UV LED supplier in China, especially for UV inkjet printer.
2. Syochi can supply you best UV LED curing system with best price.
3. Syochi want to win-win with you.
Company Photos
Applications
Syochi UV LED is well used in many area.
1. UV glue curing.
2. UV printing ink drying.
3. Photo-electricity and LCD UV exposure Special UV background;
4. Large scale UV irradiation processing.
