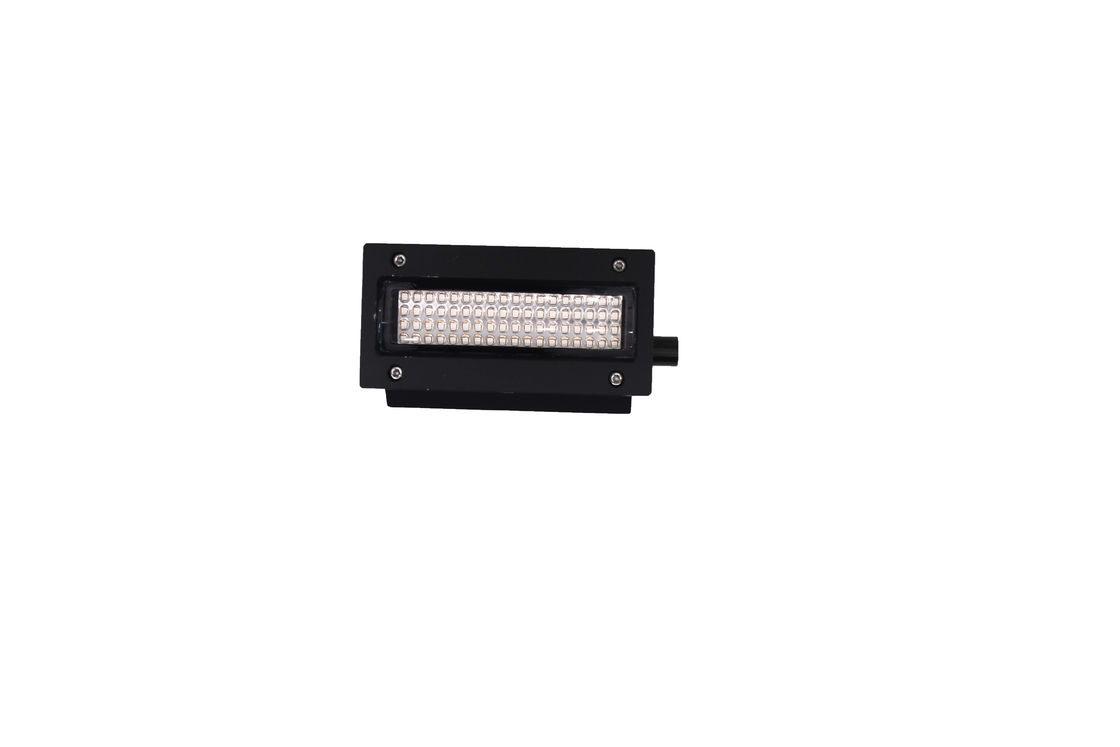

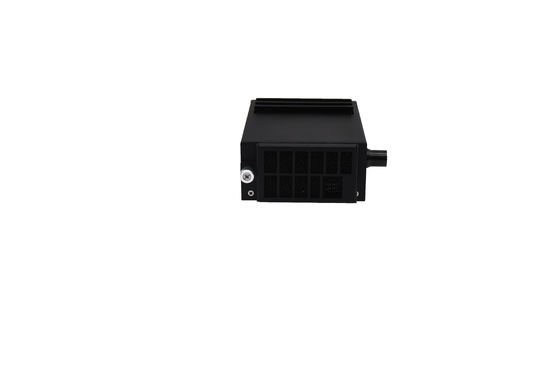

180W 395nm UV LED Lamp Water Cooling Adjustable ROHS For Printing
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | SYOCHI |
| Certification: | CE,ROHS |
| Model Number: | FL-702028B-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 SETS |
|---|---|
| Price: | 450USD/SET |
| Packaging Details: | PE foam with carton box |
| Supply Ability: | 5000 SET/MONTH |
|
Detail Information |
|||
| Product Name: | Uv Curing System | Model: | FL-702028B-01 |
|---|---|---|---|
| Power: | 120 | Emitting Size: | 70*20 |
| Intensity: | 0-8w/cm2 | Lifespan: | 20000 |
| High Light: | 395nm UV LED Lamp,180W UV LED Lamp,ROHS LED Ultraviolet Drying Lamp |
||
Product Description
395nm UV Lamp High Quality Curing System UV LED Price UV LED System Cure For Printing
Specification
| Model No. | FL-702028B-01 | Qty of UV lamp(pcs) | 1 |
| Cooling way | water cooling | Model No. of Water chiller | NONE |
| Wavelength (nm) | 395 | Input | AC220V, (optional) |
| Emitting size (mm) | 70*20 | Total Power (W) | 180 |
| Irradiate distance (mm) | 5-10 | Power per Lamp (W) | 120 |
| Irradiation intensity (W/cm²) | 5-8 adjustable | Control method (optional) |
level control (3-24V) |
| Ambient temperature (℃) | 10-50 | Lifespan (H) |
20000 |
Adopting more integrated COB package and available for customization.
The UV LED lamp can instantly start up and work without preheating and standby mode.
The UV LED lamp is suitable for many curing base materials,
like the soft, rigid, absorbent and non-absorbent materials.
