Water Cooling UV LED Spot Curing System High Power 365-395nm One Year Warranty

Product Details:

Place of Origin: Guangdong
Brand Name: SYOCHI
Certification: CE, RoHS
Model Number: SLCD-1603035C01

Payment & Shipping Terms:

Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Inside: 1 unit UV Curing system packed with PE Foam Outside: Standard Export Carton
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 2000 sets per month
Contact Now

Detail Information

Item Name: UV LED LED Brand: LG LED
UV Wavelength: 365-395nm Cooling Method: Water Cooling
Control Method: 5-32V DC Warranty: One Year
High Light:

uv light for curing glue

,

portable uv curing equipment

Product Description

Factory directly high power 365-395nm led uv curing lamp with LG LED



Specifications



Model No. SLCD-1603035C-01 Qty of UV lamp(pcs) 1-2
Cooling way water cooling Model No. of Water chiller 1500
Wavelength (nm) 395 Input AC220V, (optional)
Emitting size (mm) 160x30 Total Power (W) 1400
Irradiate distance (mm) 5-10 Power per Lamp (W) 400
Irradiation intensity (W/cm²) 5-12, adjustable Control method (optional) 5-32v
Ambient temperature (℃) 10-50 Lifespan (H) 20000





Advantages Features
Extra-long lifespan;
Energy saving: save 80% electrical energy than Mercury lamp;
Environment friendly: No mercury. No ozone;
No warm-up time;
Low temputure;
UV output adjustment: 0-100%;
Multiple control modes: Switching, Voltage.


High light intensity;
Light intensity auto adjust according printer speed;
Light intensity and be adjust and display;
Light can on/off part or full according print size;
Temperature display and over temperature control;
Single UV lamp can be controlled independently;
Warning while short circuit;
Over temperature alarm, assure the products work well.

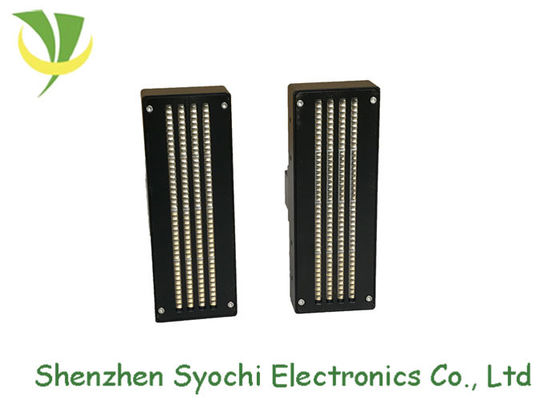

Lamp structure
