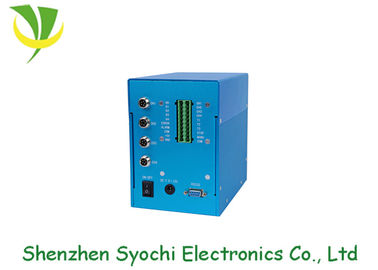

Air Cooling UV LED Spot Curing System Lamp 4mm Diameter For Adhesive Curing
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Syochi |
| Certification: | CE standard & RoHs standard |
| Model Number: | DG2L-N36-F4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | one set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Inside: 1 unit UV Curing system packed with PE Foam Outside: Standard Export Carton |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 5000 sets per month |
|
Detail Information |
|||
| Product Name: | UV LED Spot Curing Lamp | Spot Diameter: | 4mm |
|---|---|---|---|
| Cooling Method: | Natural Cooling | Control Method: | 3-24V DC |
| Intensity: | 1900mw/cm2 | Operating Temperature: | 0-50℃ |
| Application: | Adhesive, Coating | Warranty: | 12 Months |
| High Light: | uv spot curing system,portable uv curing equipment |
||
Product Description
Air cooling 4mm diameter UV LED Spot curing lamp for
adhesive curing
Specifications
| Model No. | DG2L-N36-F4 | Qty of UV lamps | 4 pcs |
| Spot diameter | 4 mm | Wavelength | 365-405nm |
| Irradiation intensity | 1900 mW/cm² | Control method | button, foot pedal, I/O, RS232C port |
| Suggested irradiation distance | 15-22 mm | Cooling way | Natural cooling or fan cooling |
| Total Power | ≤25W | Size of controller | L190*W120*H170 mm |
Standard Configuration
1 pc controller
1~4 pcs led lights
1~4 pcs lens
1 pc power adaptor
If foot pedal, ati-UV goggle, led head holder are needed pls inform us before your order is placed.
Feature& Advantage
• Powerful intensity up to 1900mW/cm2.
• 365-405nm pure UV light source.
• Multiple control modes : button, foot pedal, digital I/O, RS232C port.
• Environmental friendly, No mercury. No ozone.
• Low power consumption and energy saving.
• The led lights can be individual or group controlled by one controller.
• Stable and uniform UV irradiation.
• Long working life and low attenuation.
• Free layout, space saving.
• UV output adjustment: from 0 to 100%.
Company Photos
Certifications and Patents
Applications
• UV glue, UV adhesive, UV gel curing
• Electronic components fixation curing
• DVD/CD light head curing
• Optical lens curing
• LCD sealing curing
• Medical equipment curing
