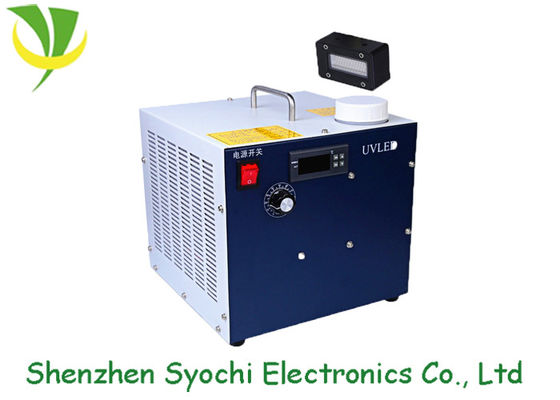

Multiple Control LED Uv Dryer Machine With 250x245x260mm Controller Size
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Syochi |
| Certification: | CE standard& RoHs standard |
| Model Number: | SL-351500A-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Inside: 1 unit UV Curing system packed with PE Foam Outside: Standard Export Carton |
| Delivery Time: | 3-5 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 5000 sets per month |
|
Detail Information |
|||
| Chip Brand: | LG&Epiled | Wavelength: | 365nm-405nm Available |
|---|---|---|---|
| Emitting Color:: | Purple | Colltroller Size: | 250x245x260mm |
| Weight: | 10KG | Warranty: | One Year |
| High Light: | uv curing equipment,uv led curing machine |
||
Product Description
CE standard UV LED drying system with 35x15mm size UV LED
module
Specifications
| Model No. | SL-351500A-01 | Qty of UV lamp(pcs) | 2 |
| Cooling way | water cooling | Model No. of Water chiller | 150 |
| Wavelength (nm) | 395 | Input | AC220V |
| Emitting size (mm) | 35x15 | Total Power (W) | 200 |
| Irradiate distance (mm) | 5-10 | Power per Lamp (W) | 50 |
| Irradiation intensity (W/cm²) | 5-12 | Control method (optional) |
3-24V |
| Ambient temperature (℃) | 10-50 | Lifespan (H) | 20000 |
| Advantages | Features |
| Extra-long lifespan; Energy saving: save 80% electrical energy than Mercury lamp ; Environment friendly: No mercury. No ozone; No warm-up time; Low temputure; UV output adjustment: From 1% to 100%; Multiple control modes: Switching, Voltage or other. |
High light intensity; Light intensity auto adjust according printer speed; Light intensity and be adjust and display; Light can on/off part or full according different print size; Temperature display and over temperature control; Single UV lamp can be controlled independently; Warning while short circuit; Over temperature alarm, assure the products work well |
1. Syochi has been in LED packaging industry for 10 years. Complete production chain ensure our quick lead time and competitive price.
2. Syochi has been in UV industry for 5 years and it’s the first China COB UV led manufacturer.
3. Syochi has professional and efficiency research team to make the products more innovative, humanism and intelligent in UV led curing area.
4. Syochi has nearly 20 patents to keep our products no disputes.
5. Syochi has strict quality control system and timely after-sales service promise, which make us get a good reputation.
Company Photos
Applications
Our UV LED curing systems are widly used in glass industry, decoration industry, building materials industry, furniture industry, etc. It's suitable for kinds brand of inkjet sprayers such as Konika,Xaar, Ricoh, and kinds of printers including flatbed printer, roll to roll printer, wide format printer, inkjet, digital printer, rotary press etc.
Syochi can customize more water cooling UV LED curing system, air cooling UV LED curing machine, UV LED area curing system, UV LED linear curing equipment, UV LED spot curing device etc.
Don't hesitate to contact our sales for more infos!
