• AC220V Input Led Uv Adhesive Curing Lamp Equipment Low Attenuation SLMD-701511B-03
Good price AC220V Input Led Uv Adhesive Curing Lamp Equipment Low Attenuation SLMD-701511B-03 online

AC220V Input Led Uv Adhesive Curing Lamp Equipment Low Attenuation SLMD-701511B-03

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Syochi
Certification: CE standard & RoHs standard
Model Number: SLMD-701511B-01

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: LED lamp and controller
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 5000sets per month
Contact Now

Detail Information

Product Name: LED UV Lamp UV Wavelength: 395nm (optional)
Emitting Window Size: 70x15mm Cooling Method: Water Cooling
Colltroller Size: 360x300x370mm Lifespan: 20000h
High Light:

uv led curing lamp

,

ultraviolet led light

Product Description

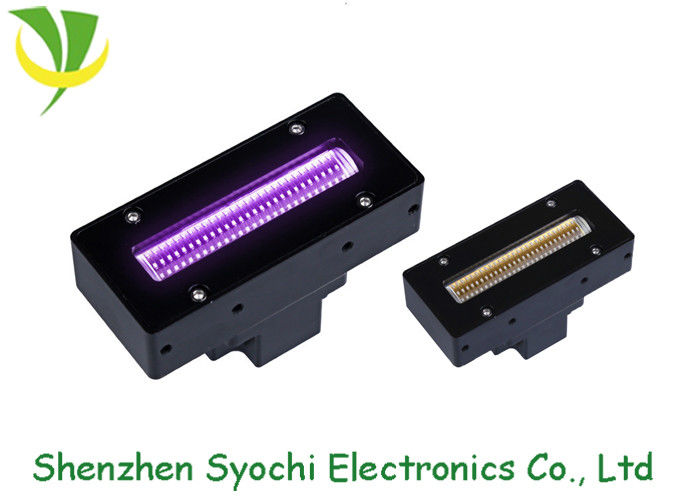

Energy saving UV ink curing LED UV lamp with 70x15mm UV LED



module


Specifications



Model No. SLMD-701511B-03 Qty of UV lamp(pcs) 2
Cooling way water cooling Model No. of Water chiller 260
Wavelength (nm) 395 Input AC220V, (optional)
Emitting size (mm) 70x15 Total Power (W) 600
Irradiate distance (mm) 5-10 Power per Lamp (W) 240
Irradiation intensity (W/cm²) 5-12, adjustable Control method (optional)

level control

(3-24V)

Ambient temperature (℃) 0-50 Lifespan (H) 20000





Advantages Features
Extra-long lifespan;
Energy saving: save 80% electrical energy than Mercury lamp ;
Environment friendly: No mercury. No ozone;
No warm-up time;
Low temputure;
UV output adjustment: From 1% to 100%;
Multiple control modes: Switching, Voltage or other.


High light intensity;
Light intensity auto adjust according printer speed;
Light intensity and be adjust and display;
Light can on/off part or full according different print size;
Temperature display and over temperature control;
Single UV lamp can be controlled independently;
Warning while short circuit;
Over temperature alarm, assure the products work well



AC220V Input Led Uv Adhesive Curing Lamp Equipment Low Attenuation SLMD-701511B-03 0

AC220V Input Led Uv Adhesive Curing Lamp Equipment Low Attenuation SLMD-701511B-03 1

 Company Photos


 AC220V Input Led Uv Adhesive Curing Lamp Equipment Low Attenuation SLMD-701511B-03 2

Customized 365-405nm uv curing lamps with 50x20mm emitting area
1. Syochi has been in LED packaging industry for 10 years. Complete production chain ensure our quick lead time and competitive price.
2. Syochi has been in UV industry for 5 years and it’s the first China COB UV led manufacturer.
3. Syochi has professional and efficiency research team to make the products more innovative, humanism and intelligent in UV led curing area.
4. Syochi has nearly 20 patents to keep our products no disputes.
5. Syochi has strict quality control system and timely after-sales service promise, which make us get a good reputation.


Applications

Our UV LED curing systems are widly used in glass industry, decoration industry, building materials industry, furniture industry, etc. It's suitable for kinds brand of inkjet sprayers such as Konika,Xaar, Ricoh, and kinds of printers includingflatbed printer, roll to roll printer, wide format printer, inkjet, digital printer, rotary press etc.

AC220V Input Led Uv Adhesive Curing Lamp Equipment Low Attenuation SLMD-701511B-03 4

Syochi can customize more water cooling UV LED curing system, air cooling UV LED curing machine, UV LED area curing system, UV LED linear curing equipment, UV LED spot curing device etc.
Don't hesitate to contact our sales for more infos!

Customized 365-405nm uv curing lamps with 50x20mm emitting area
