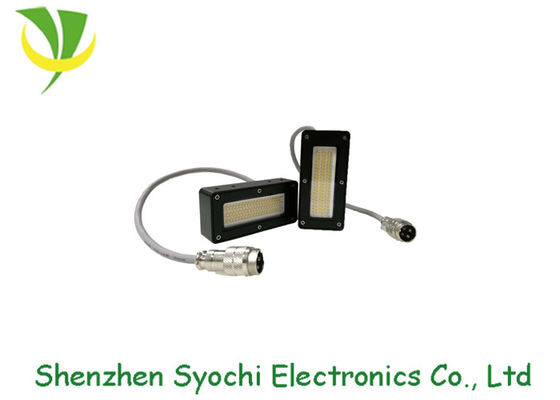

Multiple Control Mode UV LED Curing Lamp For Ricoh Gen5 Printer Head
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Syochi |
| Certification: | RoHs&CE standard |
| Model Number: | SL-602000A-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | one set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Inside: 1 unit UV Curing system packed with PE Foam Outside: Standard Export Carton |
| Payment Terms: | L/C, T/T, Western Union,Paypal, MoneyGram |
| Supply Ability: | 5000 sets per month |
|
Detail Information |
|||
| Chip Brand: | LG,Epileds,Seoul,Nichia | Luminous Intensity: | 5-12W/cm2 |
|---|---|---|---|
| Main Parts: | LED Lamps And Controller | Emitting Window: | 60x20mm(can Custom) |
| Wavelength: | 395nm | Control Method: | 3-24DC |
| Operating Temperature: | 10-50℃ | Application: | UV Curing, UV Printing, Adhesive |
| High Light: | uv led curing light,portable uv curing light |
||
Product Description
Water cooling 12w/cm2 UV LED drying device for Ricoh Gen5
printer head
Specifications
| Model No. | SL-602000A-01 | Qty of UV lamp(pcs) | 2 |
| Cooling way | water cooling | Model No. of Water chiller | 520 |
| Wavelength (nm) | 395 | Input | AC220V, (optional) |
| Emitting size (mm) | 60x20 | Total Power (W) | 450 |
| Irradiate distance (mm) | 5-10 | Power per Lamp (W) | 180 |
| Irradiation intensity (W/cm²) | 5-12, adjustable | Control method (optional) |
level control (3-24V) |
| Ambient temperature (℃) | 0-50 | Lifespan (H) | 20000 |
| Advantages | Features |
| Extra-long lifespan; Energy saving: save 80% electrical energy than Mercury lamp ; Environment friendly: NO mercury. NO Ozone; NO warm-up time; Low temputure; UV output adjustment: From 1% to 100%; Multiple control modes: Switching, Voltage or other. |
High light intensity; Light intensity auto adjust according printer speed; Light intensity and be adjust and display; Light can on/off part or full according different print size; Temperature display and over temperature control; Single UV lamp can be controlled independently; Warning while short circuit; Over temperature alarm, assure the products work well |
Applications
Our UV LED curing systems are widly used in glass industry, decoration industry, building materials industry, furniture industry, etc. It's suitable for kinds brand of inkjet sprayers such as Konika,Xaar, Ricoh, and kinds of printers includingflatbed printer, roll to roll printer, wide format printer, inkjet, digital printer, rotary press etc.
