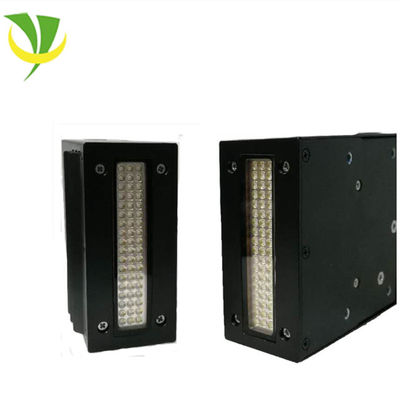

LG Chips 365nm 385nm 395nm 100W UV Led Curing Lamp
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | SYOCHI |
| Certification: | CE |
| Model Number: | FL-701528B-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 350-400USD/SET |
| Packaging Details: | CARTON |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 7000 SETS/MONTH |
|
Detail Information |
|||
| Type: | UV LED | Wavelength: | 365NM/385NM/395NM/405NM |
|---|---|---|---|
| Emitting Color: | Purple | Operating Temperature(℃): | 1 - 55 |
| Viewing Angle(°): | 90° | Chip Material: | COB LED |
| Warranty: | 1 Year | Application: | Printing |
| High Light: | 395nm UV Led Curing Lamp,100W UV Led Curing Lamp,LG Chips Ultraviolet Curing Light |
||
Product Description
100w 365nm 375nm 385nm 395nm UV High Power LED Chip For Ink Curing
| Model No. of UV lamp | FL-701528A-01 | Qty of UV lamp(pcs) | 1 |
| Cooling way | air cooling |
Ambient temperature (℃) |
0-50 |
| Wavelength (nm) | 395 | Input | AC220V, 50Hz |
| Emitting size (mm) | 70x15 |
Power per lamp (W) |
135 |
|
Irradiate distance (mm) |
5-10 |
Control method (optional) |
level control (3-24V) |
| Irradiation intensity (W/cm²) | 5-10, adjustable | Lifespan (H) | 20000 |
Advantage of UV LED technology
- UV dryers take up less space, so shops can utilize more revenue-producing equipment
- UV uses less energy, therefore significantly cutting operating costs
- UV ink goes farther than solvent-based ink (up to 60 percent per gallon)
- UV curing can increase throughput four times over solvent-based processes
- Clean-up time practically disappears, adding to the time available for production
- UV technology doesn't pollute, inside or outside the shop, which means healthier employees, and a healthier, "greener" environment
