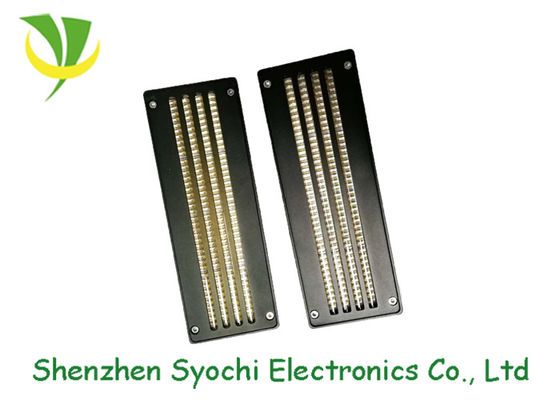

Space Saving Uv Led Curing System No Harmful Thermal Effect For UV Printing Device

China Space Saving Uv Led Curing System No Harmful Thermal Effect For UV Printing Device supplier

Large Image :  Space Saving Uv Led Curing System No Harmful Thermal Effect For UV Printing Device

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Syochi
Certification: CE & RoHs standard
Model Number: SLCD-1603035B-01

Payment & Shipping Terms:

Minimum Order Quantity: one set
Price: Negotiation
Packaging Details: Inside: 1 unit UV Curing system packed with PE Foam Outside: Standard Export Carton
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 5000 sets per month
Contact Now
Detailed Product Description
Technology: UV Curing System Wavelength: 365nm-405nm
UV Emittingsize: 160x30mm Cooling Way: Water Cooled
Intensity: 5-12W/cm2 Warranty: One Year

Water cooling LED UV 395nm curing system for UV printing device





Specifications





Model No. SLCD-1603035B-01 Qty of UV lamp(pcs) 2
Cooling way water cooling Model No. of Water chiller 1500
Wavelength (nm) 395 Input AC220V
Emitting size (mm) 160x10x4 Total Power (W) 1400
Irradiate distance (mm) 5-10 Power per Lamp (W) 400
Irradiation intensity (W/cm²) 5-12 Control method (optional)

level control

(3-24V)

Ambient temperature (℃) 10-50 Lifespan (H) 20000





Advantages Features
Extra-long lifespan;
Energy saving: save 80% electrical energy than Mercury lamp ;
Environment friendly: No mercury. No ozone;
No warm-up time;
Low temputure;
UV output adjustment: From 1% to 100%;
Multiple control modes: Switching, Voltage or other.


High light intensity;
Light intensity auto adjust according printer speed;
Light intensity and be adjust and display;
Light can on/off part or full according different print size;
Temperature display and over temperature control;
Single UV lamp can be controlled independently;
Warning while short circuit;
Over temperature alarm, assure the products work well

Space Saving Uv Led Curing System No Harmful Thermal Effect For UV Printing Device

Customized 365-405nm uv curing lamps with 50x20mm emitting area


1. Syochi has been in LED packaging industry for 10 years. Complete production chain ensure our quick lead time and competitive price.
2. Syochi has been in UV industry for 5 years and it’s the first China COB UV led manufacturer.
3. Syochi has professional and efficiency research team to make the products more innovative, humanism and intelligent in UV led curing area.
4. Syochi has nearly 20 patents to keep our products no disputes.
5. Syochi has strict quality control system and timely after-sales service promise, which make us get a good reputation.





Certifications and Patents



Space Saving Uv Led Curing System No Harmful Thermal Effect For UV Printing Device



Syochi can customize more water cooling UV LED curing system, air cooling UV LED curing machine, UV LED area curing system, UV LED linear curing equipment, UV LED spot curing device etc.
