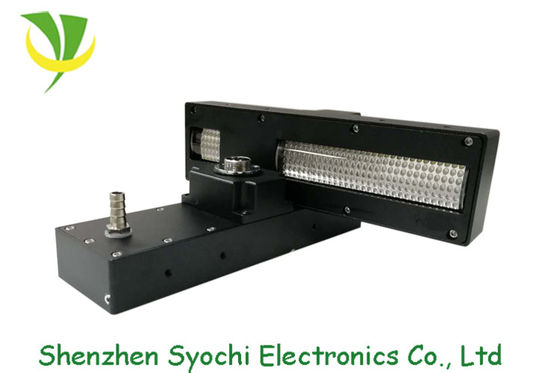

Immediate Drying UV LED Curing System 395nm Ultraviolet LED For Adhensive Curing
Product Details:
| Place of Origin: | Shenzhen, Guangdong, China |
| Brand Name: | Syochi |
| Certification: | CE standard & RoHs standard |
| Model Number: | SLCD-12525-58-2525B-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | one set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Inside: 1 unit UV Curing system packed with PE Foam Outside: Standard Export Carton |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 5000 sets per month |
|
Detail Information |
|||
| Product Name: | LED UV Light | Wavelength: | 365nm-405nm |
|---|---|---|---|
| UV Emitting Window: | 125x25+25x25mm | Control Method: | 3-24V DC |
| Emitting Color: | Purple | Energy Saving: | 80% Than Mercury Lamp |
| High Light: | led uv curing system,led uv dryer |
||
Product Description
Immediate drying UV LED curing system 395nm Ultraviolet LED for
adhensive curing
Specifications
| Model No. | SL-12525-58-2525B-01 | Qty of UV lamp(pcs) | 2 |
| Cooling way | water cooling | Model No. of Water chiller | 1500 |
| Wavelength (nm) | 395 | Input | AC220V, (optional) |
| Emitting size (mm) | 125x25+25x25 | Total Power (W) | 1300 |
| Irradiate distance (mm) | 5-10 | Power per Lamp (W) | 380 |
| Irradiation intensity (W/cm²) | 5-12, adjustable | Control method (optional) | level control (3-24V) |
| Ambient temperature (℃) | 10-50 | Lifespan (H) | 20000 |
| Advantages | Features |
| Extra-long lifespan; Energy saving: save 80% electrical energy than Mercury lamp ; Environment friendly: No mercury. No ozone; No warm-up time; Low temputure; UV output adjustment: From 1% to 100%; Multiple control modes: Switching, Voltage or other. | High light intensity; Light intensity auto adjust according printer speed; Light intensity and be adjust and display; Light can on/off part or full according different print size; Temperature display and over temperature control; Single UV lamp can be controlled independently; Warning while short circuit; Over temperature alarm, assure the products work well |
1. Syochi has been in LED packaging industry for 10 years. Complete production chain ensure our quick lead time and competitive price.
2. Syochi has been in UV industry for 5 years and it’s the first China COB UV led manufacturer.
3. Syochi has professional and efficiency research team to make the products more innovative, humanism and intelligent in UV led curing area.
4. Syochi has nearly 20 patents to keep our products no disputes.
5. Syochi has strict quality control system and timely after-sales service promise, which make us get a good reputation.
Company Photos
Applications
Our UV LED curing systems are widly used in glass industry, decoration industry, building materials industry, furniture industry, etc. It's suitable for kinds brand of inkjet sprayers such as Konika,Xaar, Ricoh, and kinds of printers includingflatbed printer, roll to roll printer, wide format printer, inkjet, digital printer, rotary press etc.
Syochi can customize more water cooling UV LED curing system, air cooling UV LED curing machine, UV LED area curing system, UV LED linear curing equipment, UV LED spot curing device etc.
Don't hesitate to contact our sales for more infos!
