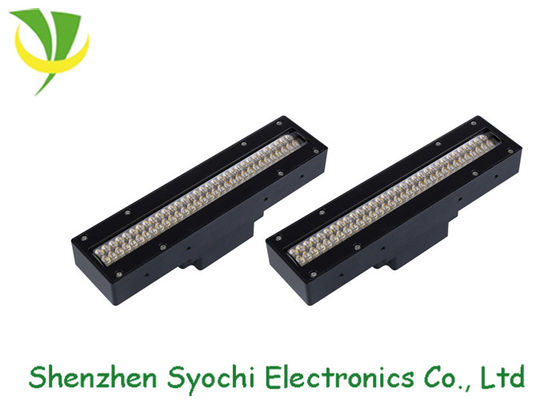

High Power Uv Led Module 750W Power 395nm Wavelength For UV Ink Curing

China High Power Uv Led Module 750W Power 395nm Wavelength For UV Ink Curing supplier

Large Image :  High Power Uv Led Module 750W Power 395nm Wavelength For UV Ink Curing

Product Details:

Place of Origin: Guangdong, China
Brand Name: Syochi
Certification: CE & RoHs standard
Model Number: SLCD-2002556B-01

Payment & Shipping Terms:

Minimum Order Quantity: one set
Price: Negotiation
Packaging Details: Inside: 1 unit UV Curing system packed with PE Foam Outside: Standard Export Carton or Wooden/Plastic box
Delivery Time: 5-10 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 5000 sets per month
Contact Now
Detailed Product Description
Product Name: UV LED Curing Lamp UV Wavelength: 395nm (optional)
Curing Time: Immediate Drying Main Parts: LED Lamps And Controller
Luminous Intensity: 5-12W/cm2 Power: 750w

High power 750W UV LED module with 395nm wavelength for UV



ink curing




Specifications



Model No.  SLCD-2002556A-01 Qty of UV lamp(pcs) 2
Cooling way water cooling Model No. of Water chiller 1500
Wavelength (nm) 395 Input AC220V
Emitting size (mm) 200x25 Total Power (W) 2200
Irradiate distance (mm) 5-10 Power per Lamp (W) 750
Irradiation intensity (W/cm²) 9-18, adjustable Control method (optional)

3-24V DC

Ambient temperature (℃) 0-50 Lifespan (H) 20000



Advantages Features
Extra-long lifespan;
Energy saving: save 80% electrical energy than Mercury lamp ;
Environment friendly: No mercury. No ozone;
No warm-up time;
Low temputure;
UV output adjustment: From 1% to 100%;
Multiple control modes: Switching, Voltage or other.

High light intensity;
Light intensity auto adjust according printer speed;
Light intensity and be adjust and display;
Light can on/off part or full according different print size;
Temperature display and over temperature control;
Single UV lamp can be controlled independently;
Warning while short circuit;
Over temperature alarm, assure the products work well.



 High Power Uv Led Module 750W Power 395nm Wavelength For UV Ink Curing

Customized 365-405nm uv curing lamps with 50x20mm emitting area
1. Syochi has been in LED packaging industry for 10 years. Complete production chain ensure our quick lead time and competitive price.
2. Syochi has been in UV industry for 5 years and it’s the first China COB UV led manufacturer.
3. Syochi has professional and efficiency research team to make the products more innovative, humanism and intelligent in UV led curing area.
4. Syochi has nearly 20 patents to keep our products no disputes.
5. Syochi has strict quality control system and timely after-sales service promise, which make us get a good reputation.




Company Photos



High Power Uv Led Module 750W Power 395nm Wavelength For UV Ink Curing




Applications

Our UV LED curing systems are widly used in glass industry, decoration industry, building materials industry, furniture industry, etc. It's suitable for kinds brand of inkjet sprayers such as Konika,Xaar, Ricoh, and kinds of printers includingflatbed printer, roll to roll printer, wide format printer, inkjet, digital printer, rotary press etc.


High Power Uv Led Module 750W Power 395nm Wavelength For UV Ink Curing
