• 80% Energy Saving LED Uv Light Equipment , LED Uv Glue Curing Lamp No Warm Up Time
  • 80% Energy Saving LED Uv Light Equipment , LED Uv Glue Curing Lamp No Warm Up Time
Good price 80% Energy Saving LED Uv Light Equipment , LED Uv Glue Curing Lamp No Warm Up Time online

80% Energy Saving LED Uv Light Equipment , LED Uv Glue Curing Lamp No Warm Up Time

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Syochi
Certification: CE standard & RoHs standard
Model Number: SLLD-1002056B-01

Payment & Shipping Terms:

Minimum Order Quantity: one set
Price: Negotiation
Packaging Details: Inside: 1 unit UV Curing system packed with PE Foam Outside: Standard Export Carton
Payment Terms: L/C, T/T, Western Union,Paypal, MoneyGram
Supply Ability: 5000 sets per month
Contact Now

Detail Information

Product Name: UV LED Brand Name: SYOCHI
Place Of Origin: Guangdong, China (Mainland) UV Wavelength: 365-395nm
Emitting Size: 100x20mm Cooling Method: Water Cooled
Curing Time: Immediate Drying Energy Saving: 80%
High Light:

uv light equipment

,

uv light for drying paint

Product Description

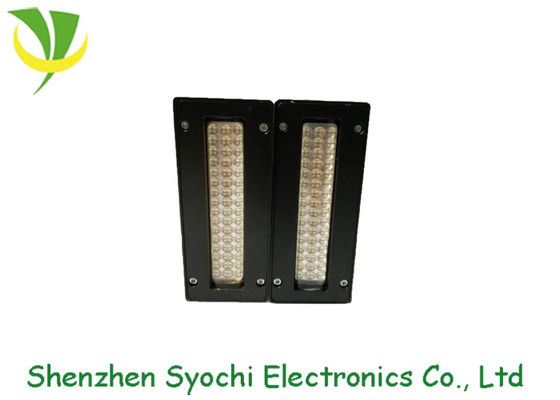

Energy saving water cooled LED UV curing light with CE& RoHs



cetification



Specifications



Model No. SLLD-1002056B-01 Qty of UV lamp(pcs) 2
Cooling way water cooling Model No. of Water chiller 520
Wavelength (nm) 395 Input AC220V, (optional)
Emitting size (mm) 100x20 Total Power (W) 900
Irradiate distance (mm) 5-10 Power per Lamp (W) 380
Irradiation intensity (W/cm²) 5-16, adjustable Control method (optional)

level control

(3-24V)

Ambient temperature (℃) 0-50 Lifespan (H) 20000





Advantages Features

Extra-long lifespan;
Energy saving: save 80% electrical energy than Mercury lamp ;
Very low heat generating, saving energy, environmentally friendly;
No warm-up time;
UV output adjustment: From 1% to 100%;

Free layout, space saving
Multiple control modes: Switching, Voltage or other.

High light intensity;
Light intensity auto adjust according printer speed;
Light intensity and be adjust and display;
Light can on/off part or full according different print size;
Temperature display and over temperature control;
Single UV lamp can be controlled independently;
Warning while short circuit;
Over temperature alarm, assure the products work well

80% Energy Saving LED Uv Light Equipment , LED Uv Glue Curing Lamp No Warm Up Time 080% Energy Saving LED Uv Light Equipment , LED Uv Glue Curing Lamp No Warm Up Time 180% Energy Saving LED Uv Light Equipment , LED Uv Glue Curing Lamp No Warm Up Time 2

Customized 365-405nm uv curing lamps with 50x20mm emitting area


1. Syochi has been in LED packaging industry for 10 years. Complete production chain ensure our quick lead time and competitive price.
2. Syochi has been in UV industry for 5 years and it’s the first China COB UV led manufacturer.
3. Syochi has professional and efficiency research team to make the products more innovative, humanism and intelligent in UV led curing area.
4. Syochi has nearly 20 patents to keep our products no disputes.
5. Syochi has strict quality control system and timely after-sales service promise, which make us get a good reputation



Company Photos



80% Energy Saving LED Uv Light Equipment , LED Uv Glue Curing Lamp No Warm Up Time 480% Energy Saving LED Uv Light Equipment , LED Uv Glue Curing Lamp No Warm Up Time 5
