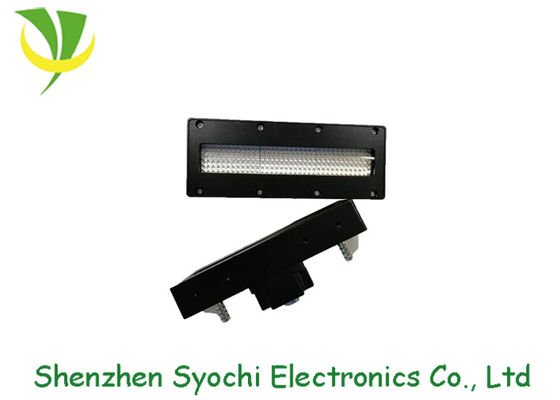

Professional LED UV Lamp For Printing Machine , Led Uv Ink Drying System

China Professional LED UV Lamp For Printing Machine , Led Uv Ink Drying System supplier
Professional LED UV Lamp For Printing Machine , Led Uv Ink Drying System supplier Professional LED UV Lamp For Printing Machine , Led Uv Ink Drying System supplier

Large Image :  Professional LED UV Lamp For Printing Machine , Led Uv Ink Drying System

Product Details:

Place of Origin: Shenzhen, Guangdong, China
Brand Name: Syochi
Certification: CE standard & RoHs standard
Model Number: SL-1502528B-01

Payment & Shipping Terms:

Minimum Order Quantity: one set
Price: Negotiation
Packaging Details: Inside: 1 unit UV Curing system packed with PE Foam Outside: Standard Export Carton
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 5000 sets per month
Contact Now
Detailed Product Description
Product Name: UV LED Curing Lamp Wavelength: 365-395nm
Voltage: AC 110V/220V Forward Current: 500mA
Emitting Window Size: 150x25mm Optical Attenuation: 5%
Power: 550w One Lamp Application: UV Curing, UV Printin

UV LED curing lamp with 150x25 emitting window UV lamp for



inkjet printer





Specifications



Model No. SL-1502528B-01 Qty of UV lamp(pcs) 2
Cooling way water cooling Model No. of Water chiller 1500
Wavelength (nm) 395 Input AC220V, (optional)
Emitting size (mm) 150x25 Total Power (W) 1500
Irradiate distance (mm) 5-10 Power per Lamp (W) 550
Irradiation intensity (W/cm²) 5-12, adjustable Control method (optional)

level control

(3-24V)

Ambient temperature (℃) 0-50 Lifespan (H) 20000





Advantages Features
Extra-long lifespan;
Energy saving: save 80% electrical energy than Mercury lamp ;
Environment friendly: NO mercury. NO Ozone;
NO warm-up time;
Low temputure;
UV output adjustment: From 1% to 100%;
Multiple control modes: Switching, Voltage or other.


High light intensity;
Light intensity auto adjust according printer speed;
Light intensity and be adjust and display;
Light can on/off part or full according different print size;
Temperature display and over temperature control;
Single UV lamp can be controlled independently;
Warning while short circuit;
Over temperature alarm, assure the products work well



Professional LED UV Lamp For Printing Machine , Led Uv Ink Drying SystemProfessional LED UV Lamp For Printing Machine , Led Uv Ink Drying SystemProfessional LED UV Lamp For Printing Machine , Led Uv Ink Drying System

Company Photos



Professional LED UV Lamp For Printing Machine , Led Uv Ink Drying System

Professional LED UV Lamp For Printing Machine , Led Uv Ink Drying System



Customized 365-405nm uv curing lamps with 50x20mm emitting area


1. Syochi has been in LED packaging industry for 10 years. Complete production chain ensure our quick lead time and competitive price.
2. Syochi has been in UV industry for 5 years and it’s the first China COB UV led manufacturer.
3. Syochi has professional and efficiency research team to make the products more innovative, humanism and intelligent in UV led curing area.
4. Syochi has nearly 20 patents to keep our products no disputes.
5. Syochi has strict quality control system and timely after-sales service promise, which make us get a good reputation.





Applications


Our UV LED curing systems are widly used in glass industry, decoration industry, building materials industry, furniture industry, etc. It's suitable for kinds brand of inkjet sprayers such as Konika,Xaar, Ricoh, and kinds of printers includingflatbed printer, roll to roll printer, wide format printer, inkjet, digital printer, rotary press etc.
