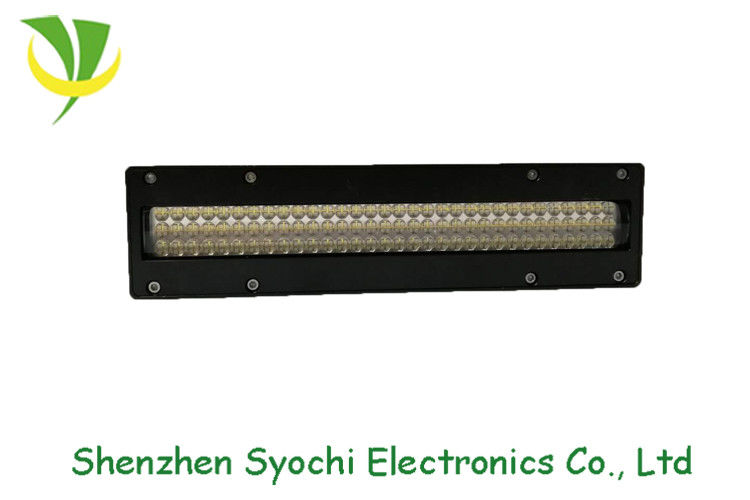

750W 395nm UV LED Curing System For High Speed UV Printing Machine

China 750W 395nm UV LED Curing System For High Speed UV Printing Machine supplier
750W 395nm UV LED Curing System For High Speed UV Printing Machine supplier 750W 395nm UV LED Curing System For High Speed UV Printing Machine supplier

Large Image :  750W 395nm UV LED Curing System For High Speed UV Printing Machine

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Syochi
Certification: CE&RoHs certification
Model Number: SL-2002556B-02

Payment & Shipping Terms:

Minimum Order Quantity: one set
Price: Negotiation
Packaging Details: Inside: 1 unit UV Curing system packed with PE Foam Outside: Standard Export Carton
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 5000 sets per month
Contact Now
Detailed Product Description
Item Name: LED UV Curing Device Wavelength: 365nm-405nm Available
Emitting Color: Purple Power: 750w Per Lamp
Control Method: 3-24V DC Protected Mode: Temperature And Traffic
Viewing Angle: 90°/120° Application: UV Printing,Coating

750W 395nm LED UV curing device for high speed UV printing



machine




Specifications



Model No. SL-2002556B-02 Qty of UV lamp(pcs) 2
Cooling way water cooling Model No. of Water chiller 5200
Wavelength (nm) 395 Input AC220V, (optional)
Emitting size (mm) 200x25 Total Power (W) 1600
Irradiate distance (mm) 5-10 Power per Lamp (W) 750
Irradiation intensity (W/cm²) 8-16, adjustable Control method (optional)

level control

(3-24V)

Ambient temperature (℃) 0-50 Lifespan (H) 20000





Advantages Features
Extra-long lifespan;
Energy saving: save 80% electrical energy than Mercury lamp ;
Environment friendly: No mercury. No ozone;
No warm-up time;
Low temputure;
UV output adjustment: From 1% to 100%;
Multiple control modes: Switching, Voltage or other.


High light intensity;
Light intensity auto adjust according printer speed;
Light intensity and be adjust and display;
Light can on/off part or full according different print size;
Temperature display and over temperature control;
Single UV lamp can be controlled independently;
Warning while short circuit;
Over temperature alarm, assure the products work well

750W 395nm UV LED Curing System For High Speed UV Printing Machine750W 395nm UV LED Curing System For High Speed UV Printing Machine

Customized 365-405nm uv curing lamps with 50x20mm emitting area
1. Syochi has been in LED packaging industry for 10 years. Complete production chain ensure our quick lead time and competitive price.
2. Syochi has been in UV industry for 5 years and it’s the first China COB UV led manufacturer.
3. Syochi has professional and efficiency research team to make the products more innovative, humanism and intelligent in UV led curing area.
4. Syochi has nearly 20 patents to keep our products no disputes.
5. Syochi has strict quality control system and timely after-sales service promise, which make us get a good reputation.



Company Photos



750W 395nm UV LED Curing System For High Speed UV Printing Machine

750W 395nm UV LED Curing System For High Speed UV Printing Machine



Applications


Our UV LED curing systems are widly used in glass industry, decoration industry, building materials industry, furniture industry, etc. It's suitable for kinds brand of inkjet sprayers such as Konika,Xaar, Ricoh, and kinds of printers includingflatbed printer, roll to roll printer, wide format printer, inkjet, digital printer, rotary press etc.
750W 395nm UV LED Curing System For High Speed UV Printing Machine
